What is WHAD ?

WHAD stands for Wireless HAcking with Devices, a short name that took us some days to agree on before starting working on a small proof of concept. It has been later read by some contributors as Wireless Hacking for Dummies, but that’s more a non-intended pun than the official complete name corresponding to this acronym. Now we simply say WHAD [ˈwɒd] and it opens a lot of other puns we may use in a future talk’s title 😅 …

Anyways, WHAD is a framework that provides tools to play with wireless devices and networks, which has been thought to be very flexible to fit a wide range of needs. It can be used to simply interact with any compatible wireless device (or network) for simple tasks like switching on and off a Zigbee lightbulb with a small Python script, but also for more complex tasks like creating a set of custom tools for a proprietary wireless protocol to assess its security.

WHAD supports many well-known protocols

The framework supports the following wireless protocols:

• Bluetooth Low Energy: introduced in the Bluetooth specification version 4.0, it is now a very popular communication protocol supported by smartphones and a great number of devices
• ZigBee: a wireless network protocol mostly used in home automation systems to interconnect devices and control them through a dedicated gateway
• Logitech Unifying: a wireless communication protocol used by Logitech’s keyboards and mice, prone to multiple vulnerabilities that have been partly fixed
• Enhanced ShockBurst: another proprietary communication protocol used by lots of wireless keyboards and mice for random brands
• LoRaWAN: a low-power Wide Area Network built upon the proprietary LoRa modulation used by many devices to communicate with applications hosted in a cloud to generally report measures.

WHAD also provides support for low-level modulations with the capability to modulate and demodulate signals when used with hardware supporting this feature.

WHAD supports various hardware interfaces

In order to communicate with as much wireless devices as possible, WHAD supports two categories of hardware interfaces:

• the native hardware interfaces that run a custom firmware compatible with WHAD (these devices speak the WHAD protocol)
• other hardware interfaces running their own firmware, not natively able to communicates with WHAD but supported through a dedicated translation layer

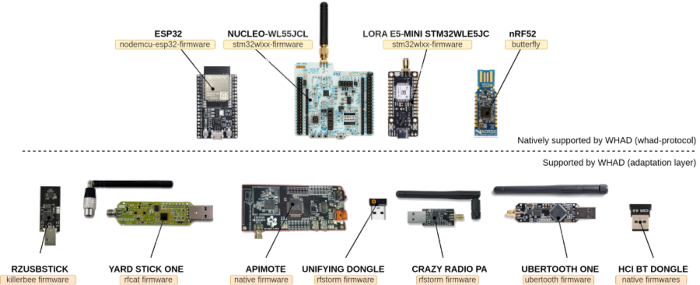

In the end, the following devices are correctly supported:

• nRF52 USB Dongles from Nordic Semiconductor
• ST Microelectronics STM32WL55xx development board
• SeeedStudio’s Lora E5 Mini
• Standard Bluetooth 4.x/5.x/6.x USB dongles
• On-board Bluetooth 4.x/5.x/6.x adapters shipped already installed in computer’s mainboards
• GreatScott Gadgets Yard Stick One
• GreatScott Gadgets Ubertooth One
• Crazyradio PA
• Riverloop Security / Attify APIMote
• Logitech’s Unifying USB dongle

WHAD provides off-the-shelf tools

The WHAD framework provides off-the-shelf tools for various wireless protocols that rely on its Python API to allow various actions on wireless devices and networks, but also on PCAP files:

• Bluetooth Low Energy scanning and exploration through wble-central, wble-periph and wble-proxy
• ZigBee scanning and exploration with wzb-enddevice
• Logitech Unifying discovery and attacks with wuni-scan, wuni-keyboard and wuni-mouse
• Generic packet capture with wsniff
• Generic packet replay with wplay
• Generic packet injection with winject
• Automated traffic analysis with wanalyze
• Live packet monitoring with wireshark through wshark
• and much more …

WHAD provides a full-featured Python library

All the tools mentioned above are built upon WHAD’s Python API, that provides a lot of features that are for most of them covered in the official documentation. Some features are described and explained in this dedicated learning platform, those missing may be added in the future.

As an example, scanning Bluetooth Low Energy devices in Python using an on-board USB Bluetooth adapter is pretty easy, as demonstrated in the following example:

from whad.device import Device
from whad.ble import Scanner

with Scanner(Device.create("hci0")) as scanner:
    for device in scanner.discover_devices():
        print(device)

Installing WHAD

WHAD can be installed natively on your host or in a virtual machine if your operating system is not compatible. As of today, WHAD only works on Linux and MacOS but not on Windows, with some limitations on Mac OS as it does not natively supports Bluetooth USB adapters.

The installation procedure is detailed in the corresponding chapter in the documentation, as some configurations may cause unexpected issues with WHAD. Please refer to it if the following installation procedure fails or if WHAD ends up being incorrectly installed on your machine.

Recommended setup

WHAD works very well on Linux machines but you should pay extra care to the following:

• make sure the version of Python you are using has its socket module compiled with support for AF_BLUETOOTH socket family
• if you are using a virtual machine, please disable the USB power-saving feature at the kernel level

It is also highly recommended to run WHAD inside a virtual environment, either managed by Python’s venv module or by an external manager like pyenv.

Make sure to have the following dependencies installed on your system before running the above commands:

• Python >= 3.9 interpreter and development headers
• a working compiler with its standard libraries as it is required to build some dependencies

Installing WHAD on a Linux machine

Most of the time, the following commands are enough to get the framework installed on a Linux machine:

$ mkdir whad && cd whad
$ python3 -m venv whad-venv
$ . ./whad-venv/bin/activate
(whad-venv)$ pip install --upgrade pip
(whad-venv)$ pip install whad

WHAD may need some privileges to access some hardware devices. The following command installs all the required udev rules and permissions:

$ winstall --rules all

You may be asked to enter your password as some commands need root privileges to run.

Testing WHAD

Run the following command in the same terminal you used to install WHAD (make sure you are using the correct virtual environment):

$ wup

This command should not produce any error and display all the supported hardware interfaces, if any, or simply return with no error or warning.
